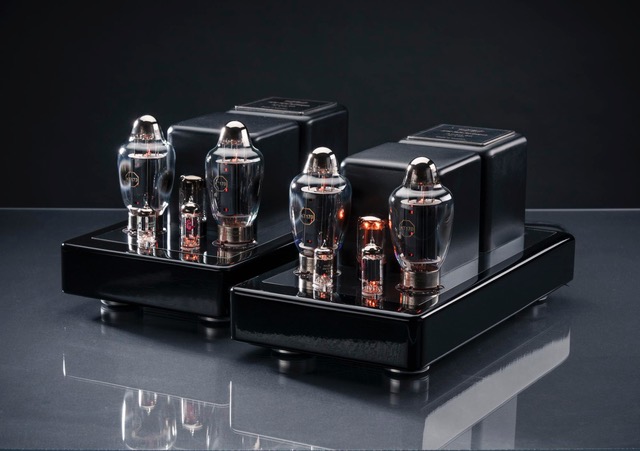

MonoBlock AirArt 170
The APS AirArt 170 is the latest amplifier from APS TubeTech. It is a 70-watt advanced monoblock amplifier operating in triode mode. It can drive the more powerful speaker systems, yet with a sound quality that only a few amplifiers can match.
AirArt 170 has an ability to provide a complete experience where the music’s transients and moods come through with a natural and highly believable quality of voices and instruments, and with the fantastic live feeling of ”being there”.
The amplifier is still an all-tube design built around a soft-start tube rectifier, but with updated transformers and a larger power supply aimed at providing the right conditions for the more powerful KT170 power tube.
The chassis has also been updated to a new passively cooled one, to avoid cooling fans in our stylish design. The flexible ”half-width” format still makes it easy to place.
Internally, we still use the market’s highest quality components from, among others, Lundahl, Jupiter, Furutech WBT and Takman to achieve the highest level of fidelity. Quality in parts certainly pays off. The bias setting in the AirArt 170 is easily adjustable with a separate measurement point per power tube. It is easily adjusted with a standard multimeter when replacing.
| Specifications | |
| Power transformer and choke | Lundahl |
| Output transformer | Lundahl |
| Signal path resistors | Takman REY och TKD |
| Signal path capacitor | Jupiter Copper Foil, Paper & Wax |
| Solder | Silver solder Sn95.5/Ag3.8/Cu0.7 |
| RCA contacts | Wiborg/Furutech |
| XLR contacts | Neutrik |
| Speaker terminals | Wiborg/Furutech |
| Signal cabling | Jupiter 20AWG 4N CDA-101 |
| Vacuum tubes | GZ34/5AR4 x 1 KT170 or AKT150 x 2 ECC82/12AU7 x 2 |
| Bias adjustment | Separate measuring point per power tube. Adjustable by multimeter |
| Power output | Triode mode 60 Watt with KT150 70 watts with KT170 |
| Input impedance | 500 kOhm |
| Output impedance | 8 Ohm |
| Frequency range | ±0,5 dB 6 Hz till > 60 kHz |
| Harmonic distorsion | < 0,4 %, 1 W, 1 kHz |
| Ampere | 0,8 A |
| Dimensions | 22 x 43 x 20 cm (W x D x H) |
| Weight | 18,2 Kg |
| CE certified |
